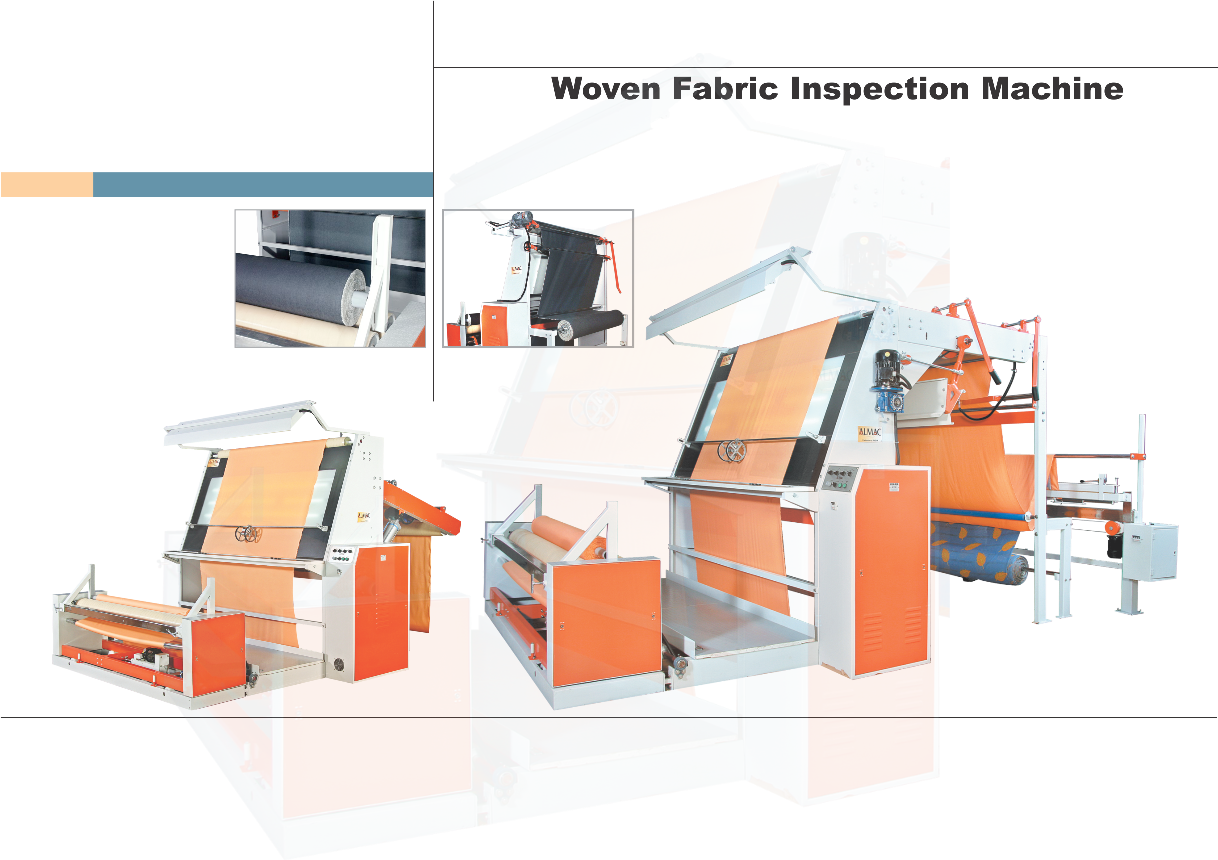

WOVEN FABRIC INSPECTION MACHINE

Application

  • ALMAC has designed and developed Fabric Inspection Machines to suit all types of applications. We engineer machines that allow inspection of any type of woven fabrics and are designed to control tension in the most elastic to heaviest fabrics like industrial textiles weighing up to 1500 gsm.
  • Give us your module mix and we will integrate them in just the right way to suit your needs.

Features

  • Variable speed from 0 — 50 meters / min
  • 1500 — 6000 mm sizes engineered by us
  • Angle options of 70°, 60° or 45° for fixed and 60° to 45° for changeable
  • Inspection platform height from 1.3 m to 2.5 m available
  • Underneath lighted area is 600 mm in height
  • Power requirements as per country of use

Technical Specifications

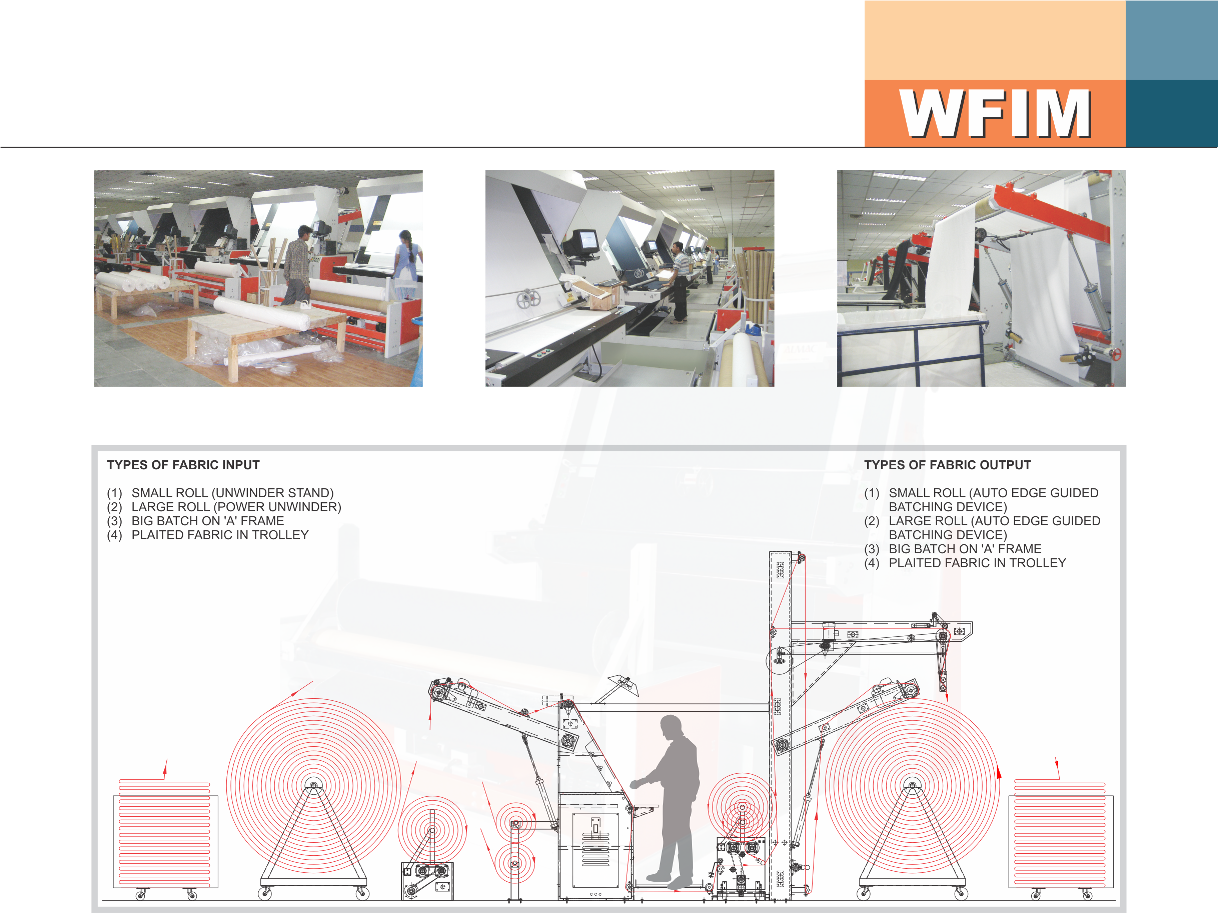

  • Various models available allow input & output from plaited, small rolls, large rolls and / or batched rolls on A-frames
  • Overhead & underneath lighting
  • Fixed or changeable angle of inspection platform
  • Forward & reverse movement of fabric
  • Face in/ face out operation
  • Jog /run operation with instantaneous start & stop
  • Piece end detector automatically stops machine
  • All guide rollers made from aluminum, thus rust free for life
  • Crease free & tension free winding of fabric
  • Compact rolls due to rock tight winding of fabric
  • Perfect edge guidance with accurate length measurement
  • Invertors with built in PLC drive our machines

Options

  • LengthMAC : Extremely accurate electronic length measurement giving accuracy of +0.01%
  • PredetermineMAC : Automatic machine stop at preset length
  • DataMAC : Computerised defect data logging & analysing system
  • OpticutMAC : Optimised cut map generator
  • WidthmonitorMAC : Automatic width monitoring system
  • BarcodeMAC : Barcode label printer & reader
  • LabelMAC : Fault marking device
  • RailsewMAC : Semi-automatic railway sewing system
  • AutocutMAC : Auto cross cutter
  • selvedgesshiftMAC : Automatic fabric & selvedge shifter for thick selvedges
  • WeighMAC : Electronic weighing of small rolls with an accuracy of +50 grams
  • UnwindMAC : Two roll surface unwinder
  • PowerunwindMAC : Positively driven power unwinder for Large Rolls
  • AutonipMAC : Automatically operated nip rollers
  • HandsfreeMAC : Foot pedal operation
  • ComfortMAC : Sliding operator chair
  • MendMAC : Horizontal mending platform with underneath lighting
  • E+L Guiders with High Entry : For centering of fabric
  • DoffMAC : Auto doffer
