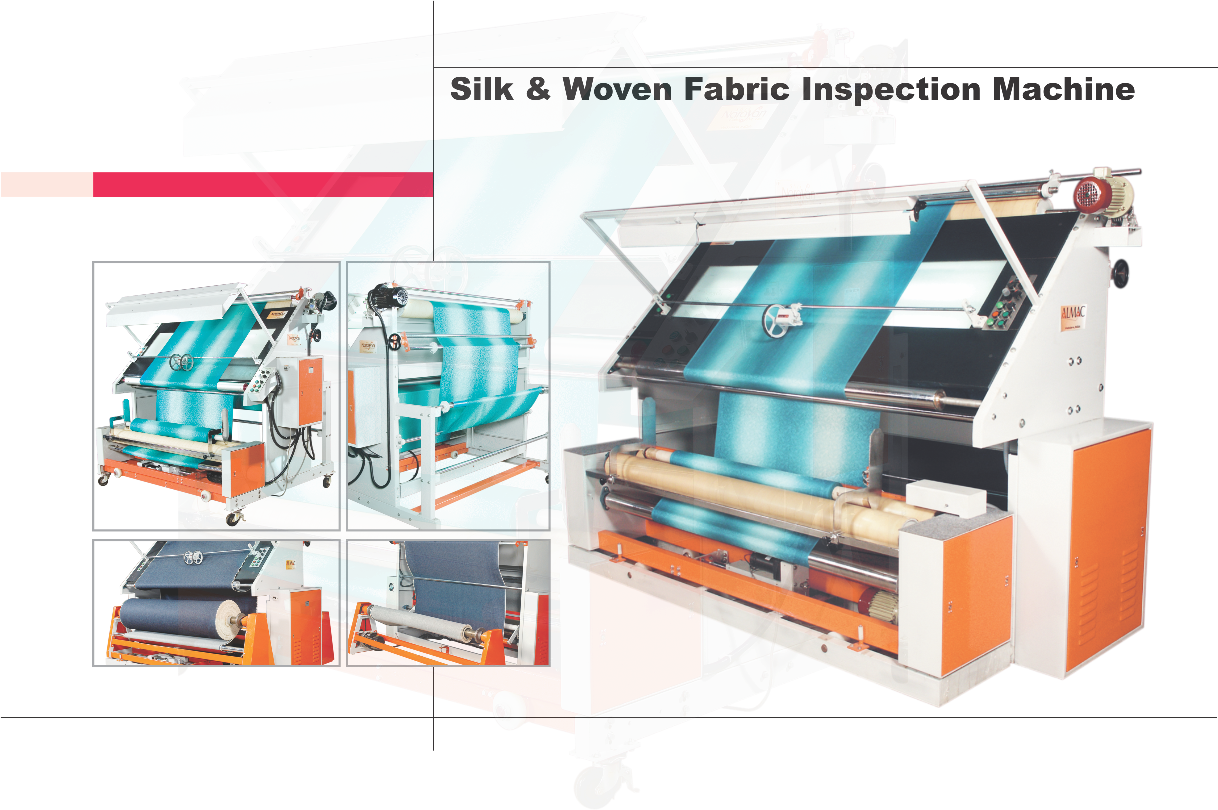

SILK & WOOVEN FABRIC INSPECTION MACHINE

Application

  • ALMAC has designed and developed Fabric Inspection Machines to suit all types of applications. We engineer machines that allow inspection of any type of woven fabrics and are designed to control tension in the most elastic to heaviest fabrics like industrial textiles weighing up to 1000 gsm.
  • Give us your module mix and we will integrate them in just the right way to suit your needs.

Features

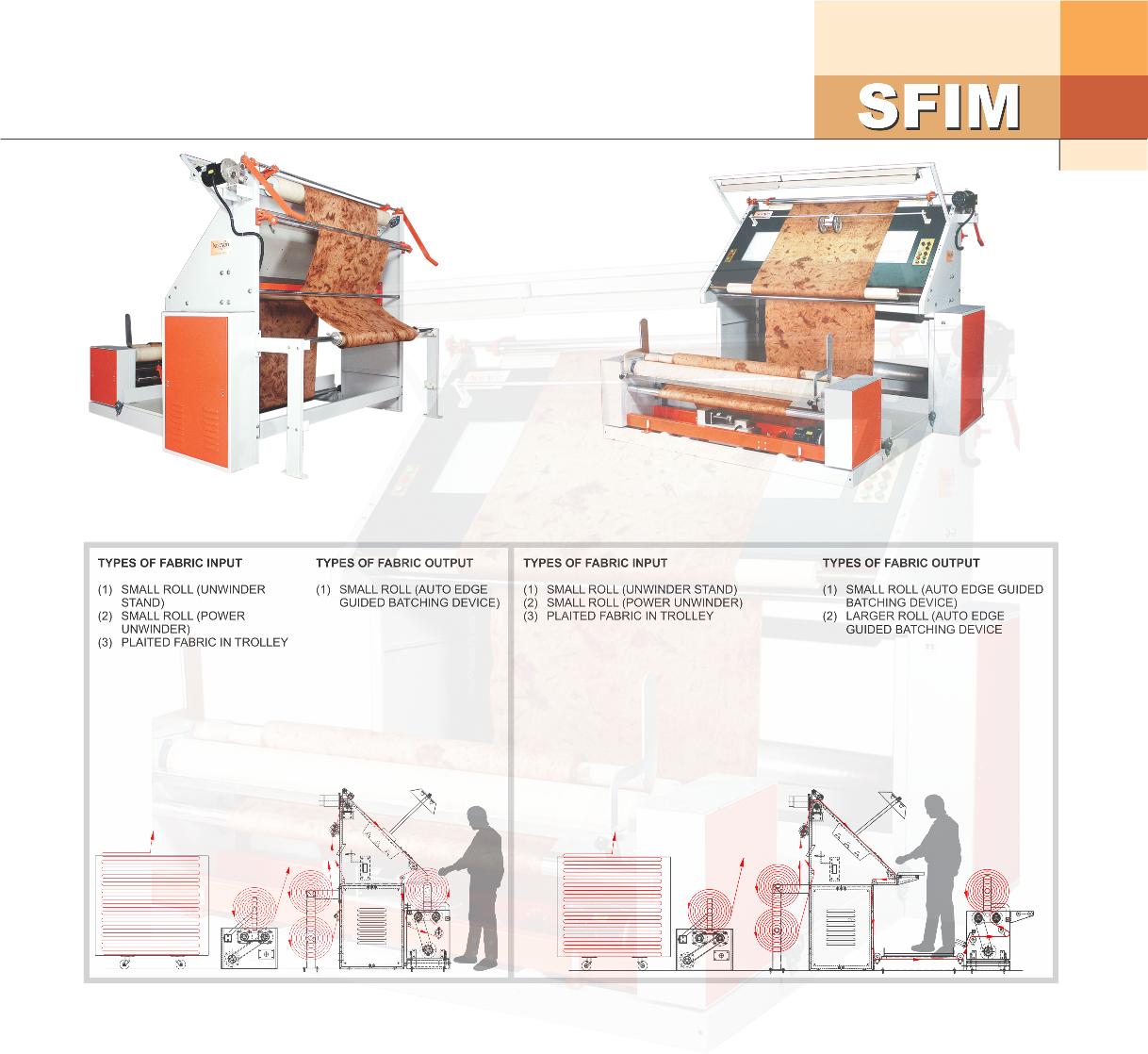

  • Various models with input & output options from plaited & small rolls (18” dia.) e Overhead & underneath lighting
  • Fixed angle of inspection platform
  • Forward & reverse movement of fabric
  • Face in/ face out operations
  • Jog/run operation with instantaneous start & stop
  • Piece end detector automatically stops machine
  • All guide rollers made from aluminum thus rust free for life
  • Crease free & tension free winding of fabric
  • Compact rolls due to differential ratio of the batcher rolls
  • Perfect edge guidance with accurate length measurement
  • Invertors with built in PLC drive our machines

Technical Specifications

  • Variable speed from 0 — 50 meters / min
  • 1500 — 6000 mm sizes engineered by us
  • Inspection platform height 1.0 m
  • Fixed angle @ 45°
  • Underneath lighted area is 450 mm in height
  • Power requirements as per country of use

Options

  • LengthMAC : Extremely accurate electronic length measurement giving accuracy of +0.01%
  • PredetermineMAC : Automatic machine stop at preset length
  • DataMAC : Computerised defect data logging & analysing system
  • OpticutMAC : Optimised cut map generator
  • WidthmonitorMAC : Automatic width monitoring system
  • BarcodeMAC : Barcode label printer & reader
  • LabelMAC : Fault marking device
  • RailsewMAC : Semi-automatic railway sewing system
  • AutocutMAC : Auto cross cutter
  • selvedgesshiftMAC : Automatic fabric & selvedge shifter for thick selvedges
  • WeighMAC : Electronic weighing of small rolls with an accuracy of +50 grams
  • UnwindMAC : Two roll surface unwinder
  • PowerunwindMAC : Positively driven power unwinder for Large Rolls
  • AutonipMAC : Automatically operated nip rollers
  • HandsfreeMAC : Foot pedal operation
  • ComfortMAC : Sliding operator chair
