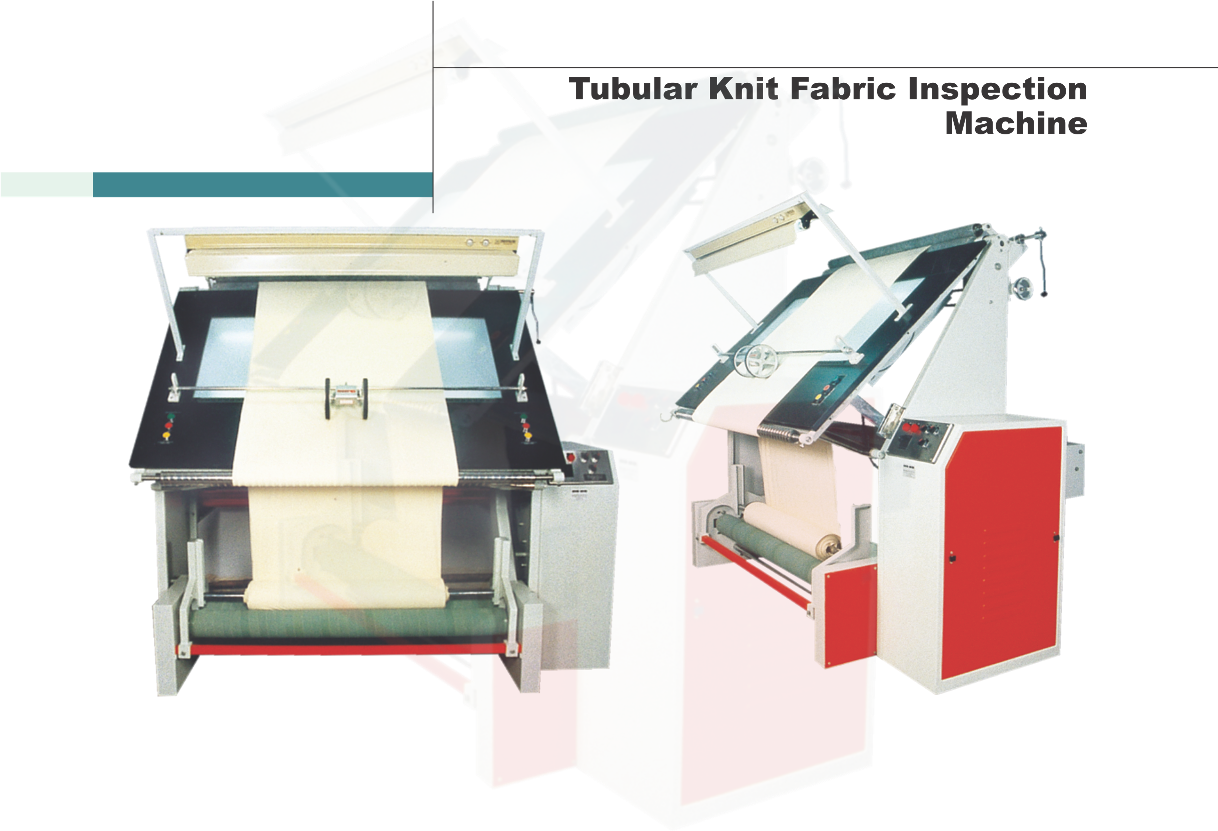

TUBULAR KNITTED FABRIC INSPECTION MACHINE

Application

  • ALMAC has designed and developed Fabric Inspection Machine to suit all types of applications. This machine has been specially designed to inspect Tubular Knitted Fabrics. These can also be designed to handle any type of fabric in roll form, plaited form, etc.
  • Give us your module mix and we will integrate them in just the right way to suit your needs.

Features

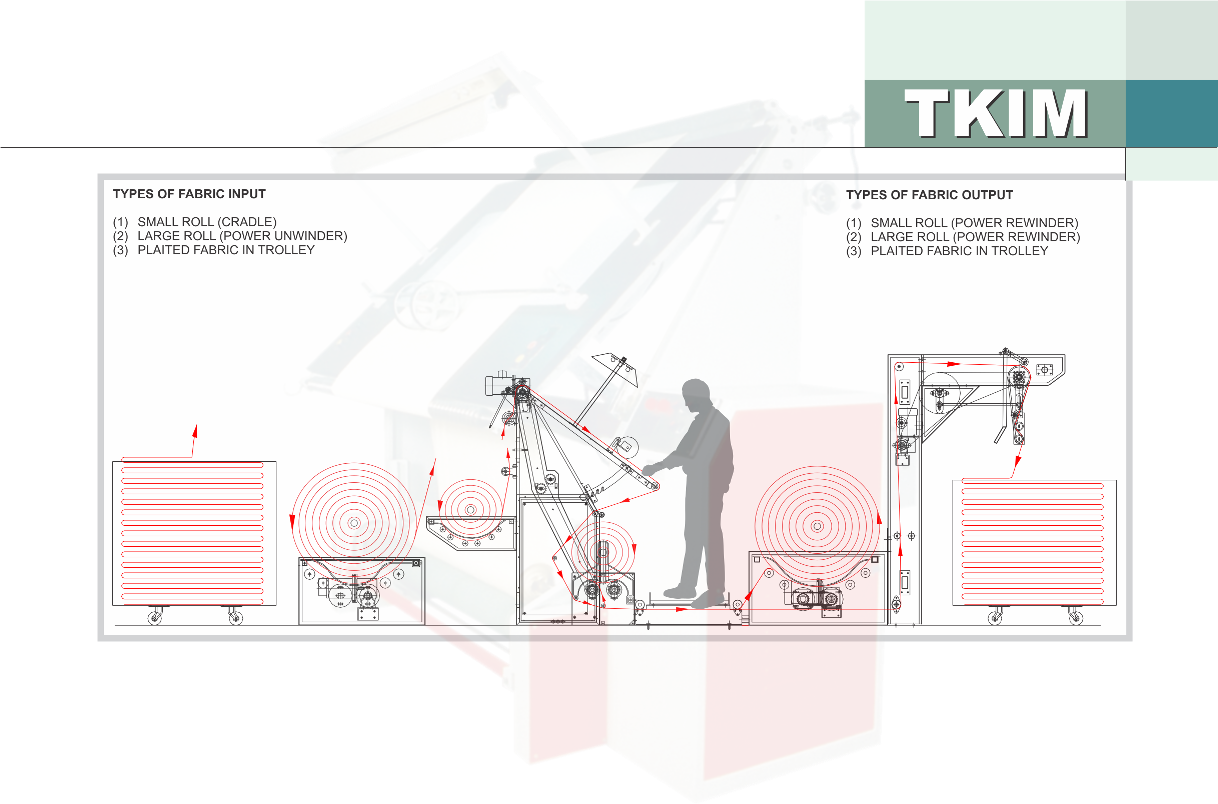

  • Various models with input & output options from plaited, small rolls (22” dia.) and / or large rolls
  • Various models with input & output options from plaited, small rolls (22” dia.) and / or large rolls
  • Changeable angle of inspection platform
  • Forward & reverse movement of fabric
  • Forward & reverse movement of fabric
  • All guide rollers made from aluminum thus rust free for life
  • Crease free & tension free winding of fabric
  • Compact rolls due to rock tight winding of fabric
  • Inventors with built in PLC drive our machines

Technical Specifications

  • Variable speed from 0 — 50 meters / min.
  • 1150 mm & 1500 mm sizes engineered by us
  • Inspection platform height 1.1 m
  • Underneath lighted area is 535 mm in height
  • Angle changeable from 45° to 60°
  • Power requirements as per country of use

Options

  • LengthMAC : Extremely accurate electronic length measurement giving accuracy of +0.01%
  • PredetermineMAC : Automatic machine stop at preset length
  • DataMAC : Computerised defect data logging & analysing system
  • OpticutMAC : Optimised cut map generator
  • BarcodeMAC : Barcode label printer & reader
  • LabelMAC : Fault marking device
  • WeighMAC : Electronic weighing of small rolls with an accuracy of +50 grams
  • PowerunwindMAC : Positively driven power unwinder for Large Rolls
  • AutonipMAC : Automatically operated nip rollers
  • HandsfreeMAC : Foot pedal operation
  • ComfortMAC : Sliding operator chair
