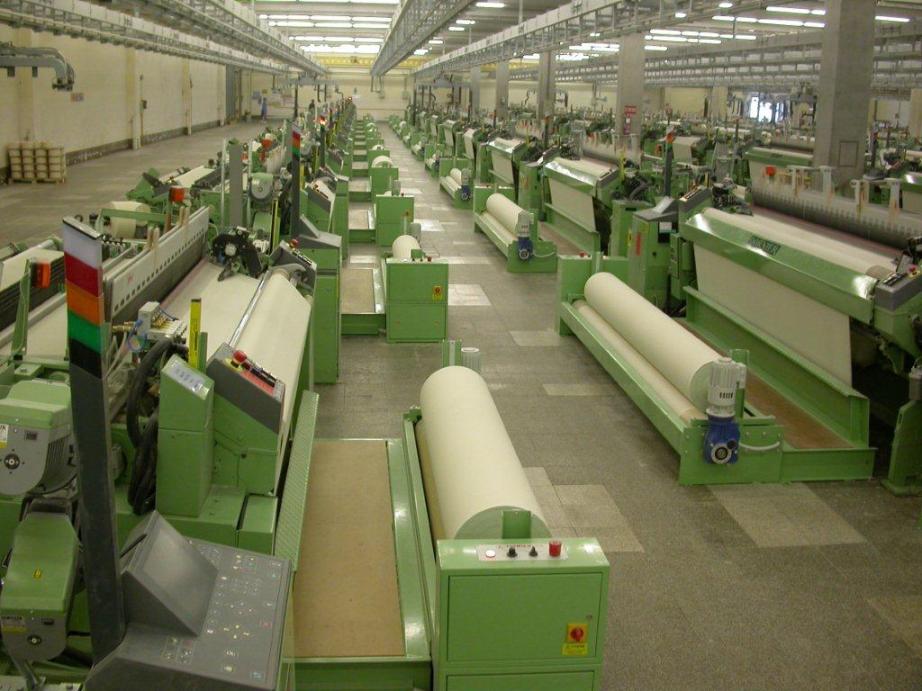

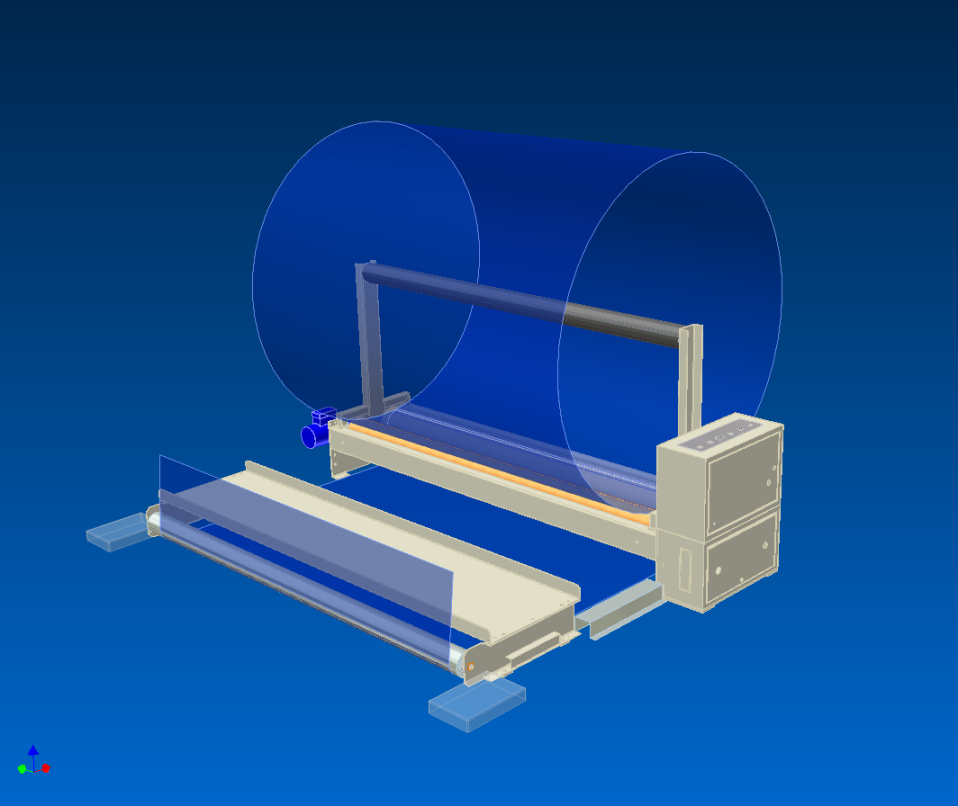

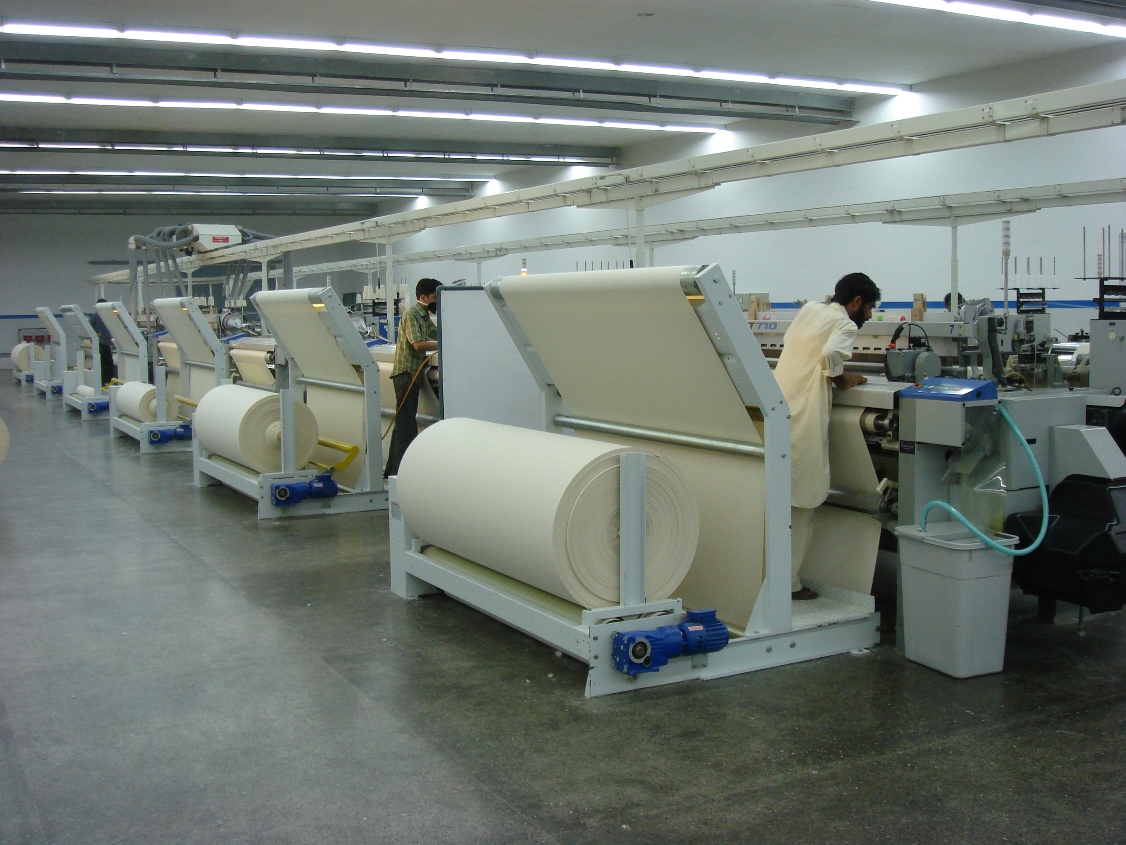

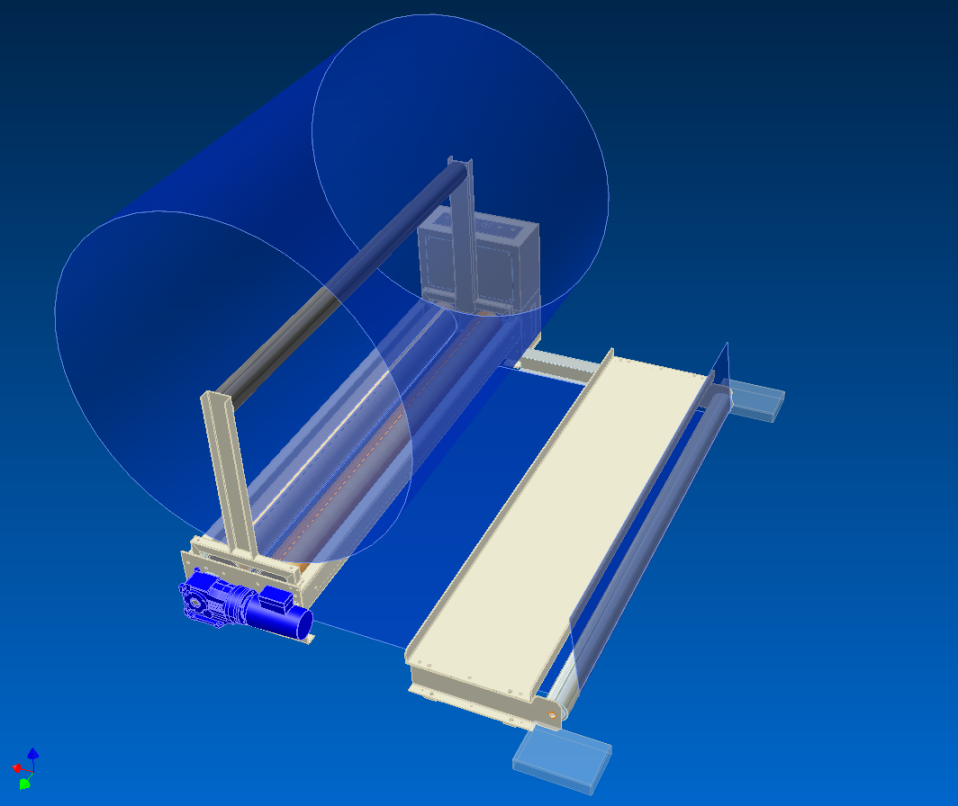

Loom Batcher / Batching Motion TCR with Continuous Pull

Features

  • Batching Motion model TCP winds the fabric with continuous pull (tangential system).
  • The winding speed is controlled by an adjustable geared motor that works in constant torque.
  • The torque is adjustable in relation to the different types of fabric.
  • It can also run in the opposite direction.
  • Equipped with a device for maintaining the compactness of the fabric roll.

Technical Specifications

  • Looms width: 1800 — 6000 mm sizes engineered by us
  • Maximum Roll Diameter: 1500 mm
  • Type of Fabric: Denim, Bottom Weight, Shirting, Terry, Home Textiles etc
  • Cardboard core internal dia: 75 ~ 100 mm

Options

  • Screen light to inspect the fabric in transparent.
  • Manual or Pneumatic pusher for the unloading of the fabric roll.
  • Device laterally moving to avoid overlap of the selvedge - Traversing System.
